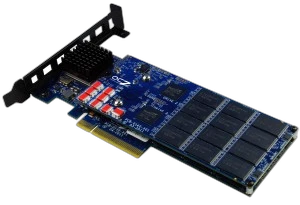

VeloDrive

The VeloDrive was designed for small to medium sized businesses, enterprise clients and system integrators. As such, it is very capable of reaching up to 950 MB/s in sequential read speed and up to 1000 MB/s in sequential write speed. Your need for a PCI express SSD could be answered by this drive as it is manufactured in three capacities: 300 GB, 600 GB and 1.2 TB. It can run both hardware and software RAID due to the presence of an on-board RAID controller. The maximum IOPS for a 4k random read is 95,000.

The VeloDrive is powered by four SandForce SF-1565 SSD processors and contains MLC NAND Flash modules. Data encryption and ECC recovery is present as well as power loss data protection. Power consumption is average for PCI express SSD at 10.5 W (9.5 W when idle). Mean Time Between Failure for this drive is 2,500,000 and backed up by a warranty of three years.

Specifications:

• Sequential Read: Up to 1000 MB/second
• Sequential Write: Up to 950 MB/second
• NAND type: MLC
• Interface: PCI express
• Controller: 4x SandForce SF-1565
• Form Factor: X8 slot low profile with full height bracket
• Power Consumption (Active): 10.5W
• Power Consumption (Idle):9.5W
• Warranty: 3 years
• MTBF: 2,500,000 hours

Part Numbers:

• 300 GB: VD-HHPX8-300G
• 600 GB: VD-HHPX8-600G
• 1.2 TB: VD-HHPX8-1.2T
