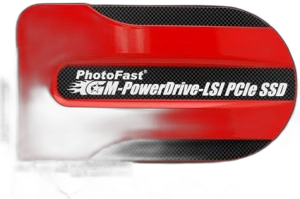

Photofast’s GM-PowerDrive-LSI is a series of solid state drives utilizing the PCI Express 2.0 8x interface, and is consequently available as an add-on card for server and desktop computer motherboards. The drives are available in 240GB, 480GB and 960GB capacities and utilize an internal RAID controller to achieve speed of up to 1400MB/s in sequential reads and 1500MB/s in sequential writes. The type of on-board flash used is of the multi-level cell (MLC) variety.
The drives use up to 512MB of 800MHz DDR2 DRAM cache in addition to their flash memory modules. Photofast seems to lack U.S. distributors at this time, and the drives are therefore only available on the Asian market or for direct import.
Specifications:
- Sequential Read: Up to 1400MB/s
- Sequential Write: Up to 1500MB/s
- Interface: PCI Express x8 Gen 2.0
- NAND Type: MLC
- Controller: N/A
- Form Factor: PCI Express
- DRAM Cache: 512MB DDR2
- Input Voltage: 12V, 5V ± 5%
- MTBF: 1,5 million hours
Reviews:
N/A
